Composition Comparison

What is this?

This repository houses a collection of UI-framework compsition challenges. It identifies a few patterns for how composing components, and implements them using Bonsai, Elm, and React

Is this supposed to be unbiased?

Not really

  1. I’m pretty good at Bonsai, pretty bad at Elm, and my React knowledge is quite outdated
  2. I designed Bonsai with automatic component composition as a primary goal

01 - Components

What is a “UI component” anyway? To me, a component describes a group of code with the following properties:

  1. It serves as an abstraction — Users of the component shouldn’t need to know about any implementation details
  2. It’s built to be composed with other components — It’s right there in the name! Components must be robust to being combined with one another
  3. Encapsulated — A component shouldn’t leak private details, nor should it require composition with other components in order to be useful.

For the rest of this series, we’re going to be looking at ways to compose a very basic “counter” component.

Defining a component

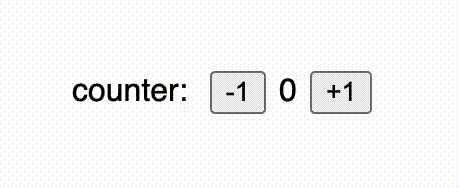

The counter component that we’ll be building is a basic widget that maintains a count (as an integer), and two buttons, one to decrease the stored value, and another to increase it.

Our counter components will be configurable in two ways:

  1. The user of the counter component can pick a text label to display
  2. The caller can also pick the delta by which the increment and decrement buttons will modify the stored value

The user of the component will also probably want access to the value in some way, which the component should also provide.

Bonsai Elm React
open! Core
open! Import

let apply_action _ctx by model = function
  | `Incr -> model + by
  | `Decr -> model - by
;;

let component ~label ?(by = Bonsai.return 1) graph =
  let state, inject = Bonsai.state_machine1 ~default_model:0 ~apply_action by graph in
  let view =
    let%map state and inject and by and label in
    let button op action =
      N.button ~attr:(A.on_click (fun _ -> inject action)) [ N.textf "%s%d" op by ]
    in
    N.div
      [ Vdom.Node.span [ N.textf "%s: " label ]
      ; button "-" Decr
      ; Vdom.Node.span [ N.textf "%d" state ]
      ; button "+" Incr
      ]
  in
  view, state
;;

module Counter exposing (Model, Msg, init, update, view)

import Browser
import Html exposing (Html, div, span, text)
import Html.Events exposing (onClick)


type alias Model =
    Int


init : Model
init =
    0


type Msg
    = Increment
    | Decrement


update : Int -> Msg -> Model -> Model
update howMuch msg model =
    case msg of
        Increment ->
            model + howMuch

        Decrement ->
            model - howMuch


view : Int -> String -> Model -> Html Msg
view howMuch label model =
    let
        button op action =
            Html.button [ onClick action ] [ text (String.concat [ op, String.fromInt howMuch ]) ]
    in
    div []
        [ text (String.concat [ label, ": " ])
        , button "-" Decrement
        , text (String.fromInt model)
        , button "+" Increment
        ]

import React from 'react';

export const defaultState = 0;

export function applyAction(state, action, by) {
  switch (action) {
    case 'increment':
      return state + by;
    case 'decrement':
      return state - by;
    default:
      console.error('BUG');
  }
}

const Counter = ({ label, by, state, inject }) => {
  let increment = () => inject('increment');
  let decrement = () => inject('decrement');
  return (
    <div>
      {label}:<button onClick={decrement}> -{by}</button>
      {state}
      <button onClick={increment}> +{by}</button>
    </div>
  );
};

export default Counter;

This Bonsai component is exposed to users through the component function. You’ll notice that we use regular OCaml functions to pass properites to the component, like ~label and the optional ?by parameters.

The component function produces a component that yields both the view and the counter value. You’ll also notice that in defining Counter.component, we use Bonsai.state_machine1. state_machine1 is a primitive component that we use to build our bigger component. The 1 indicates that the state machine has access to one input value that it can read when processing an action.

This elm component is in the shape of a whole module which exports its initial model, transition function, and view calculations separately for the user to compose. Notice how the update function takes an integer to determine how much the state should be increased or decreased by, and how the view function also requires that value in addition to a string to use for the label.

If you’re used to React, this code might be a bit confusing at first. Clearly the counter component is stateful, so why is it exporting a default state and a state-machine transition function instead of bundling a call to useState inside the component?

Firstly, useState would be buggy, two clicks of the button on the same rendering frame would act like it had only been clicked once, so we’d actually want to pick useReducer.

But beyond that, component-local state like useState and useReducer is truly component-local, with no way to export that state to other components like we’d need in the “sequential” and “multiplicity” sections. Moreover, component-local state vanishes when the component is unmounted, making it useful only for state that you want to be transient.

This implies that when a component manipulate state that other pieces of the application care about, that state needs to be stored and manipulated outside of the compoennt. This is usually done by either using a state-management system like Redux, or by pushing the state into the nearest common ancestor component of any subcomponents that need to read or write to that state. We’ll be using the latter approach in order to avoid excess boilerplate.

Since Bonsai was originally modeled after the Elm Architecture, it shouldn’t be super surprising that defining a component looks similar in both languages. Both focus on the state for a component being modeled as a state-machine, with explicit model and and action types which correspond to states and state transitions.

Using a component

The “topmost” component in an application is sometimes referred to as the “application component”. These can be as big or as small as necessary, so let’s start out with the smallest app-component possible: a single counter.

Bonsai Elm React
open! Core
open! Import

let app graph =
  let view, _ = Counter.component ~label:(Bonsai.return "counter") graph in
  view
;;

let () = Start.start app

module Main exposing (main)

import Browser
import Counter


update =
    Counter.update 1


view =
    Counter.view 1 "counter"


main =
    Browser.sandbox { init = Counter.init, update = update, view = view }

import React, { useReducer } from 'react';
import ReactDOM from 'react-dom';
import Counter, { applyAction, defaultState } from '../../shared/Counter';

const App = () => {
  let [state, inject] = useReducer(
    (state, action) => applyAction(state, action, 1),
    defaultState
  );
  return <Counter label="counter" by={1} state={state} inject={inject} />;
};

ReactDOM.render(<App />, document.getElementById('app'));

Because the application component is an instance of our counter component, we need to invoke the component-generating function with its required parameters. Because we’re fine with the default by argument being 1, we only need to provide the value for the label.

The Elm component requires passing all the configuration to all the different pieces of the component separately. Make sure that you keep both of the by values in sync!

Because our components can’t manage their own state, the top-level application component is where the call to useReducer can be found, the results of which are passed on to the counter component.

02 - Parallel Composition

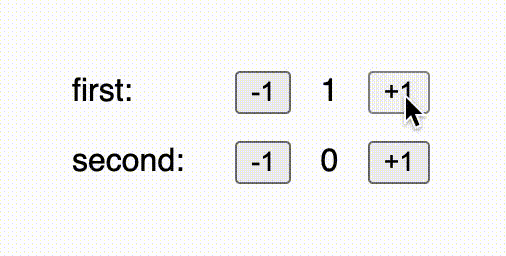

“Parallel Composition” is a term that I came up with for describing the style of composing components that are completely isoloated from one another. Not only are these components visually separated, they’re also logically separated, removing or changing one would have no impact on the other.

Bonsai Elm React
open! Core
open! Import

let app graph =
  let first, _ = Counter.component ~label:(Bonsai.return "first") graph in
  let second, _ = Counter.component ~label:(Bonsai.return "second") graph in
  let%map first and second in
  N.div [ first; second ]
;;

let () = Start.start app

module Main exposing (main)

import Browser
import Counter
import Html exposing (Html, div)


type alias Model =
    { first : Counter.Model, second : Counter.Model }


init : Model
init =
    { first = Counter.init, second = Counter.init }


type Msg
    = First Counter.Msg
    | Second Counter.Msg


update : Msg -> Model -> Model
update msg model =
    case msg of
        First msg_first ->
            { model | first = Counter.update 1 msg_first model.first }

        Second msg_second ->
            { model | second = Counter.update 1 msg_second model.second }


view : Model -> Html Msg
view model =
    div []
        [ Html.map First (Counter.view 1 "first" model.first)
        , Html.map Second (Counter.view 1 "second" model.second)
        ]


main =
    Browser.sandbox { init = init, update = update, view = view }

import React, { useReducer } from 'react';
import ReactDOM from 'react-dom';
import Counter, { applyAction, defaultState } from '../../shared/Counter';

const App = () => {
  let [state1, inject1] = useReducer(
    (state, action) => applyAction(state, action, 1),
    defaultState
  );
  let [state2, inject2] = useReducer(
    (state, action) => applyAction(state, action, 1),
    defaultState
  );
  return (
    <div>
      <Counter label="first" by={1} state={state1} inject={inject1} />
      <Counter label="second" by={1} state={state2} inject={inject2} />
    </div>
  );
};

ReactDOM.render(<App />, document.getElementById('app'));
For Bonsai, we use call the component function multiple times to create new instances of it, and then let%arr to compose the views produced by those instances.

In Elm there’s some more boilerplate involved. The application-component is now bigger, and that means that we need a new model and action type to go along with it.

Just like in the Bonsai example, we need to compose the views of these components manually (there’s no way around this if you want precise control of the view). However, we also need to call Html.map, which is used to transform the type of the message produced by the view.

More apparent is our need to implement an update function which dispatches actions to the correct component.

Parallel composition is very similar to the previous example. The duplicate boilerplate to set up state is a bit unfortunate though.

Fun fact: Bonsai got its name from parallel-composition! If you visualize the structure of components that are composed in parallel, it looks like a little tree; hence the name “Bonsai!” Sadly it wasn’t until after 1.0 that we realized that its real power was sequential composition…

03 - Sequential Composition

Components are composed sequentially when there’s a dependency relationship between them. They are no longer independent, and the state of one component can influence the other.

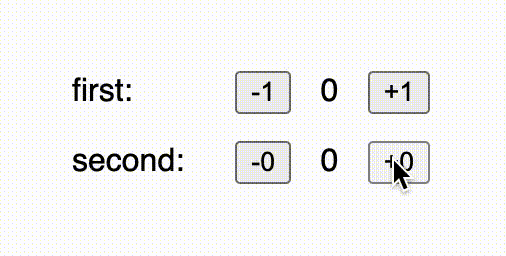

In this demo, we’ll use the counter value of one component to modify the delta parameter on the other.

Bonsai Elm React
open! Core
open! Import

let app graph =
  let first_view, by = Counter.component ~label:(Bonsai.return "first") graph in
  let second_view, _ = Counter.component ~label:(Bonsai.return "second") ~by graph in
  let%map first = first_view
  and second = second_view in
  N.div [ first; second ]
;;

let () = Start.start app

module Main exposing (main)

import Browser
import Counter
import Html exposing (Html, div)


type alias Model =
    { first : Counter.Model, second : Counter.Model }


init : Model
init =
    { first = Counter.init, second = Counter.init }


type Msg
    = First Counter.Msg
    | Second Counter.Msg


update : Msg -> Model -> Model
update msg model =
    case msg of
        First msg_first ->
            { model | first = Counter.update 1 msg_first model.first }

        Second msg_second ->
            { model | second = Counter.update model.first msg_second model.second }


view : Model -> Html Msg
view model =
    div []
        [ Counter.view 1 "first" model.first |> Html.map First
        , Counter.view model.first "second" model.second |> Html.map Second
        ]


main =
    Browser.sandbox { init = init, update = update, view = view }

import React, { useReducer } from 'react';
import ReactDOM from 'react-dom';
import Counter, {
  applyAction as counterApplyAction,
  defaultState as counterDefaultState,
} from '../../shared/Counter';

const defaultState = {
  first: counterDefaultState,
  second: counterDefaultState,
};

function applyAction(state, { which, subAction }) {
  switch (which) {
    case 'first':
      return {
        ...state,
        first: counterApplyAction(state.first, subAction, 1),
      };
    case 'second':
      return {
        ...state,
        second: counterApplyAction(state.second, subAction, state.first),
      };
  }
}

const App = () => {
  let [state, inject] = useReducer(applyAction, defaultState);
  let injectFirst = (subAction) => inject({ which: 'first', subAction });
  let injectSecond = (subAction) => inject({ which: 'second', subAction });
  return (
    <div>
      <Counter label="first" by={1} state={state.first} inject={injectFirst} />
      <Counter
        label="second"
        by={state.first}
        state={state.second}
        inject={injectSecond}
      />
    </div>
  );
};

ReactDOM.render(<App />, document.getElementById('app'));

We finally get to use the extra return value from Counter.component! We bind the value, and immediately pass it into the next component through its optional parameter. The rest of the code should be very familiar.

On the Elm side, the code looks very similar to the code from the “parallel composition” example above, but the differences matter a lot! The main change is that calling the second counter-component’s update and view functions, instead of passing in 1 for “how much to increase or decrease the value by”, we reach in to the model of the first component to pull out the currently stored value. I’ll be honest, this makes me feel a bit icky; I’d love to know if there’s a better way to do this.

Sequential composition for React starts looking a lot more like the Elm example. It would be reasonable to look at this code and ask the question “why are you building a big reducer instead of applying two smaller reducers?” The reason is that with separate reducers, transformations applied at the same time will not be able to witness one another. In many scenarios, this kind of race condition is important to handle manually, and the only way to do so is by putting all the actions inside the same reducer.

04 - Multiplicity

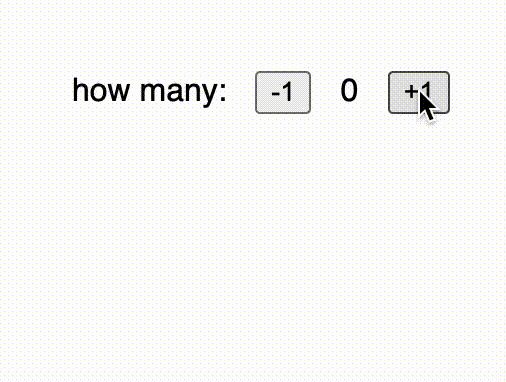

So far we’ve dealt with a constant number of components, but determining the number of components in an app at runtime is a common requirement. For this example, we’ll use the current value of one counter component to determine how many more counter-components should be on the page.

An important additional restriction is that subcomponent state should be persisted for compoenents even when they aren’t currently active.

Bonsai Elm React
open! Core
open! Import

let app graph =
  let counter_view, how_many = Counter.component ~label:(Bonsai.return "how many") graph in
  let map =
    let%map how_many in
    List.init how_many ~f:(fun i -> i, ()) |> Int.Map.of_alist_exn
  in
  let others = Bonsai.assoc (module Int) map graph ~f:(fun key _data graph ->
    let view, _ = Counter.component ~label:(key >>| Int.to_string) graph in
    view)
  in
  let%map counter_view and others in
  N.div (counter_view :: Map.data others)
;;

let () = Start.start app

module Main exposing (main)

import Browser
import Counter
import Dict exposing (Dict)
import Html exposing (Html, div, map)


type alias Model =
    { howMany : Counter.Model, others : Dict Int Counter.Model }


init : Model
init =
    { howMany = Counter.init, others = Dict.empty }


type Msg
    = HowMany Counter.Msg
    | ForKey Int Counter.Msg


updateOther which msg =
    Dict.update which
        (\m ->
            Just (Counter.update 1 msg (Maybe.withDefault 0 m))
        )


update : Msg -> Model -> Model
update appMsg model =
    case appMsg of
        HowMany msgHowMany ->
            { model | howMany = Counter.update 1 msgHowMany model.howMany }

        ForKey which msg ->
            { model | others = updateOther which msg model.others }


viewOther : Dict Int Counter.Model -> Int -> Html Counter.Msg
viewOther models key =
    case Dict.get key models of
        Just model ->
            Counter.view 1 (String.fromInt key) model

        Nothing ->
            Counter.view 1 (String.fromInt key) Counter.init


view : Model -> Html Msg
view model =
    List.range 0 (model.howMany - 1)
        |> List.map (\i -> Html.map (ForKey i) (viewOther model.others i))
        |> List.append [ Html.map HowMany (Counter.view 1 "how many" model.howMany) ]
        |> div []


main =
    Browser.sandbox { init = init, update = update, view = view }

import React, { useReducer } from 'react';
import ReactDOM from 'react-dom';
import Counter, {
  applyAction as counterApplyAction,
  defaultState as counterDefaultState,
} from '../../shared/Counter';

const defaultState = {};

function applyAction(state, { which, subAction }) {
  return {
    ...state,
    [which]: counterApplyAction(state[which] || 0, subAction, 1),
  };
}

const App = () => {
  let [howMany, injectHowMany] = useReducer(
    (state, action) => counterApplyAction(state, action, 1),
    counterDefaultState
  );
  let [subcomponentState, subcomponentInject] = useReducer(applyAction, defaultState);
  let subcomponents = Array.from({ length: howMany }, function (_, i) {
    let injectMe = (subAction) => subcomponentInject({ which: i, subAction });
    return (
      <Counter
        key={i}
        label={i}
        by={1}
        state={subcomponentState[i] || 0}
        inject={injectMe}
      />
    );
  });
  return (
    <div>
      <Counter label="how many" by={1} state={howMany} inject={injectHowMany} />
      {subcomponents}
    </div>
  );
};

ReactDOM.render(<App />, document.getElementById('app'));

For Bonsai, this one is a bit hacky, I’ll admit! Bonsai.assoc reads an input map and creates an instance of the provisded component for each key/value pair in the map. Because it needs that input map, we first make a map from int to unit, and pass that into assoc. Usually assoc is given a map that actually has some meaning - like rows in a table - and aren’t built at the last second just to give to the function.

I’ll admit, I know this code could be written better, but I don’t really know where to start. One thing is certain though; the pattern of storing models in a map and keeping the model map separate from the “what is visible” state is necessary, so I think this general pattern will always exist.

For this one, the subcomponent state and the “how many” state are actually independent, so we can use two useReducer calls again! One of these reducers is for the bag of states that are necessary for rendering the dynamic components.
